PART NO. SPL.PAGE DESCRIPTION
AHH5456 15.R.9 Sealing rubber -outer -rear ramp -(2) -(flooring, 1500)
AHH5456 16.R.9 Seal -rear ramp outer (rubber) (2) -(floor, 1600 and 1600-MK-II Coupe)
AHH5456 TC.R.8 Seal -rear ramp outer (rubber) (2) -(flooring, Coupe, Twin Cam)

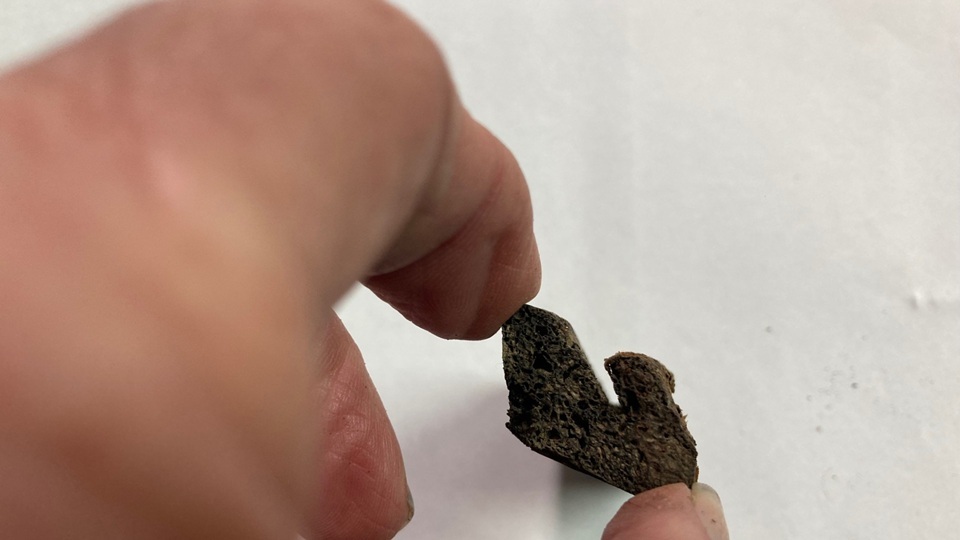

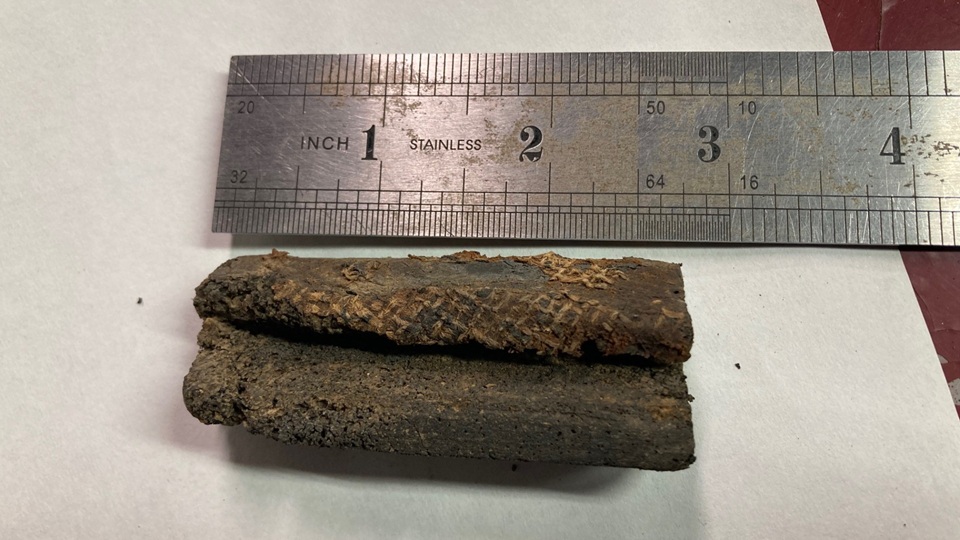

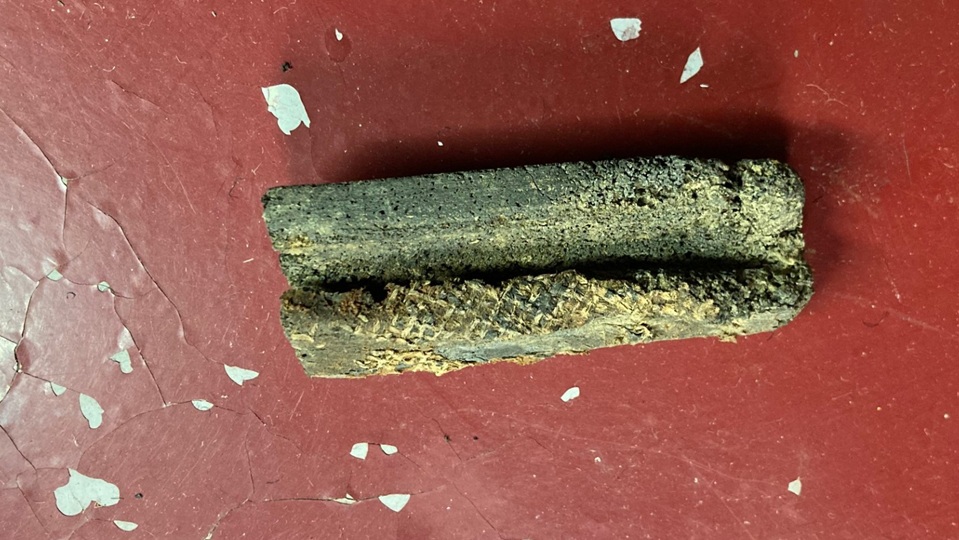

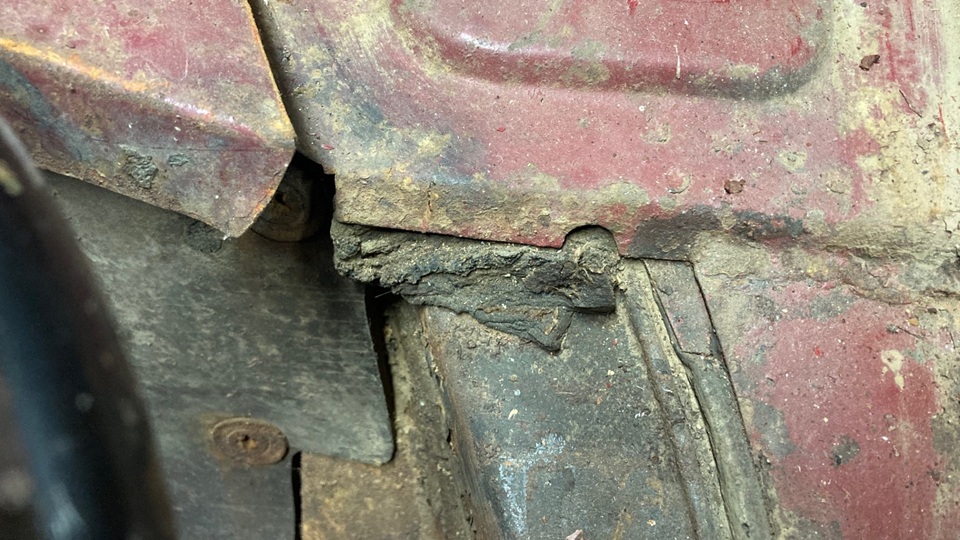

This rubber part is to seal the joint between the body fixed battery panel and top of the chassis frame.
See here:
RT-632 - Body Installation

|
